How this app talks to toothbrushes over BLE

The app uses a dedicated com.ocleanble.lib SDK, centered on OcleanBleManager. UI code (search, connect, settings, Wi‑Fi setup, OTA) calls that facade; the actual scan/connect/GATT/protocol work lives in obfuscated helper classes (j.*, g.*, i.*, z.*, I1111llI.*).

Architecture overview

    flowchart TB
    subgraph App
        UI[Activities / ViewModels]
        Svc[OcleanDataService]
    end

    subgraph SDK["com.ocleanble.lib"]
        Mgr[OcleanBleManager]
        Hub[j.g - event hub]
        Conn[i.e - connect client]
        Scan[I11111I1l - BLE scanner]
        Cmd[g.e / g.g - command protocol]
    end

    subgraph Android
        Adv[Toothbrush BLE advertising]
        GATT[BluetoothGatt + GattCallback j.h]
    end

    UI --> Mgr
    Svc --> Mgr
    Mgr --> Hub
    Hub --> Scan
    Hub --> Conn
    Conn --> GATT
    Scan --> Adv
    GATT --> Cmd
    Cmd --> Hub


After init, OcleanBleManager holds a j.g instance that:

• registers OnOclean*Listener callbacks (connection, battery, brush data, etc.)
• owns the connect client (i.e)
• listens for Bluetooth adapter on/off

1. SDK initialization

Init goes through:

OcleanBleManager.Companion.options()
    .init(context, secretKey, authenticationCallback);

On construction (OcleanBleManager constructor):

1. Optionally validates the app against https://sdkauth.oclean.com (controlled by manifest meta-data VALIDATE).
2. Creates j.g, which registers a BluetoothAdapter state receiver and the connect client.
3. If validation is enabled and fails, BLE stays disabled (I11111Il = false).

Configurable options include scan period (default 15s), connect timeout (20s), auto-reconnect, connection priority (LOW_LATENCY / LOW_POWER / BALANCE), and MTU behavior.

2. BLE advertising & scanning

The toothbrush advertises passively; the phone scans—there is no app-side advertising.

Scan engine

• Class: I11111I1l (“BLEScanClientImp2”)
• API: BluetoothLeScanner.startScan(filters, settings, callback)
• Settings (ScanSettings):
  • setScanMode(2) → LOW_LATENCY
  • setCallbackType(1) → all matches
  • setReportDelay(0) → immediate callbacks
• Default filter: empty ScanFilter (scan everything nearby)
• Timed scan: auto-stops after scanPeriod (or runs forever with onStartScanAlways)

Entry points from the app:

Parsing advertising data

Each result becomes an OcleanBluetoothDevice, which parses the raw scanRecord into AD elements (length/type/payload):… ```48:66:c:\dekompil\oclean_care\app\src\main\java\com\ocleanble\lib\entity\OcleanBluetoothDevice.java synchronized (b.f3556a) { map = new HashMap<>(); if (bArr != null && bArr.length > 1) { int i11 = 0; while (true) { int i12 = bArr[i11] & 255; if (i12 <= 0 || bArr.length <= i11 + i12 + 1) { break; } int i13 = bArr[i11 + 1] & 255; // … map.put(Integer.valueOf(i13), bArr2);

Useful extracted fields:
- **`getRecordName()`** — AD type **0x09** (Complete Local Name)
- **`getRecordMac()`** — AD type **0xFF** (manufacturer data), interpreted as MAC bytes

`AdvertisingInfo` exists as a type/value pair model but is not heavily used in the visible app code; parsing is mainly in `OcleanBluetoothDevice`.

<h3>App-side filtering (what actually counts as “our brush”)</h3>

The SDK scan is broad; the **Search** UI filters in the ViewModel:

```58:72:c:\dekompil\oclean_care\app\src\main\java\com\yunding\noopsychebrushforeign\page\device\ui\search\s.java
    public final synchronized void onFoundDevice(OcleanBluetoothDevice device) {
        // ...
        String lowerCase = name.toLowerCase(locale);
        if (kotlin.text.o.x0(lowerCase, "oclean", false) || kotlin.text.o.x0(lowerCase, "crest", false) || kotlin.text.o.x0(lowerCase, "xtc", false)) {
            // exclude already-bound MACs, then publish to UI
        }
    }

When SDK validation is on, scan config can also load known device “face” names from a local SQLite deviceList table (I1111II1.I11111) and pass them into scan config (z.f), though the low-level match logic in z.c.onScanResult is not fully decompiled.

3. Connection flow (GATT client)

Starting a connection

• connectionDevice(address, useMaxMtu) — direct GATT connect by known MAC
• scanConnectionDevice(address, …) — scan with ScanFilter.setDeviceAddress(mac), connect on first hit

Both queue work on a thread pool in i.b / i.a.

GATT connect parameters

        if (i10 >= 26) {
            BluetoothGatt bluetoothGattConnectGatt = device.connectGatt(context, false, hVar, 2, 1);
            // autoConnect=false, TRANSPORT_LE=2, PHY_LE_1M=1
        } else {
            BluetoothGatt bluetoothGattConnectGatt2 = device.connectGatt(context, false, hVar, 2);
        }

hVar is j.h, a BluetoothGattCallback.

Connection state machine

Defined in ConnectionState and driven by a0.d.run():

1. CONNECT_START — wait for onConnectionStateChange(STATE_CONNECTED)
2. DISCOVER_SERVICES — discoverServices(), wait for onServicesDiscovered
3. CHANGE_MTU — requestMtu(123) if max MTU requested, else 23
4. CHECK_EQUIPMENT — read standard Device Information + battery characteristics
5. COMPLETE — pick device-specific command handler, enable notifications, notify app

On disconnect, GATT is closed and ConnectedDeviceInfo is removed unless it was an intentional disconnect.

4. GATT services & characteristics

After service discovery, the app uses several GATT profiles.

Standard Device Information Service (`0000180a`)

Read during connect to identify the brush (h.b):

Battery Service (`0000180f`)

Oclean proprietary service (`8082caa8-41a6-4021-91c6-56f9b954cc18`)

Defined in g.g (and variants for other models):

Notifications are enabled by writing CCCD 00002902-... via g.e.W():

    public final void W(UUID suuid, UUID cuuid) {
        BluetoothGattCharacteristic bluetoothGattCharacteristicQ = q(suuid, cuuid);
        if (bluetoothGattCharacteristicQ != null) {
            if (bluetoothGatt.setCharacteristicNotification(bluetoothGattCharacteristicQ, true)) {
                // write ENABLE_NOTIFICATION_VALUE or ENABLE_INDICATION_VALUE to descriptor
            }
        }
    }

Blufi Wi‑Fi provisioning (Wi‑Fi-capable models)

Used by classes like g.s, g.b0, g.n0, g.u0:

OcleanBleManager.connectWifi(), startScanWifi(), etc. delegate to these handlers.

OTA (firmware upgrade)

During OTA, ConnectedDeviceInfo.isOTAUpgrade is true and GATT events route to o.c “otaHook” instead of normal commands. Dialog OTA (o.d) uses separate UUIDs, e.g. service 8082caa8-...cc34 (note cc34 vs normal cc18).

5. Command protocol (above GATT)

Each connected device gets a g.e subclass based on DeviceType (from model number + protocol), chosen in i.a.j(). There are dozens of variants (g.g, g.w0, g.s, g.b0, …) for different brush families.

Sending commands

High-level API examples on OcleanBleManager:

• syncTime(), syncBrushScheme(), setVoice(), connectWifi(), etc.

These call methods on g.e, which build binary payloads with hex opcodes, e.g.:

• 0201 — sync time
• 0202 — request device info
• 0206 / 020B — brush scheme related
• 0212, 0213, … — various settings
• 0303, 0307 — other control/info commands

Writes go through g.e.r() / s(), executed on a background executor by g.d:

1. writeCharacteristic()
2. Wait for onCharacteristicWrite success (queue f10137n)
3. If expecting a reply, wait for notification (queue f10138o) with timeout
4. Parse response in g.g.v(uuid, bytes) and dispatch app events (battery, running state, brush data, etc.)

Payloads use little-endian ByteBuffer in most commands; MTU limits chunk size (MtuSize.DEFAULT=23, MAXIMUM=123).

Receiving live data

j.h.onCharacteristicChanged is the central notify handler:… ```29:71:c:\dekompil\oclean_care\app\src\main\java\j\h.java public final void onCharacteristicChanged(BluetoothGatt gatt, BluetoothGattCharacteristic characteristic) { // … if (connectedDeviceInfo.isOTAUpgrade()) { otaHook.g(gatt, characteristic); } else { command.v(uuid2, value); // parse opcode + dispatch listeners } }

Parsed events propagate through **`j.g`** to listeners registered on **`OcleanBleManager`** (`OnOcleanDataChangeListener`, `OnOcleanRunningChangeListener`, `OnOcleanBatteryChangeListener`, etc.).

---

<h2>6. How the main app uses this</h2>

| Layer | Role |
|-------|------|
| **`OcleanDataService`** | Long-running service; registers connection/mode/area listeners; syncs brush records, time, weather, etc. |
| **`/module_ble/*` routes** | ARouter screens: Search, Connect, Wi‑Fi add, OTA, voice, theme |
| **`ConnectDeviceActivity`** | Shows connect UI; calls `connectionDevice()` / `scanConnectionDevice()` |
| **`SearchDeviceViewModel` (`s`)** | Calls `onStartScan()`, filters discovered devices |
| **Feature screens** | Call `OcleanBleManager.getInstance()` for commands once connected |

Typical bind flow:
1. User opens **`/module_ble/Search`**
2. `onStartScan()` discovers brushes
3. User picks device → **`/module_ble/Connect`** with MAC
4. GATT connect + identify model → command handler attached
5. App syncs time/settings and keeps link via **`OcleanDataService`**

---

<h2>Summary</h2>

| BLE phase | What happens |
|-----------|----------------|
| **Advertising** | Brush broadcasts name + manufacturer data; app does not advertise |
| **Scanning** | `BluetoothLeScanner`, low-latency, usually unfiltered; app filters by name/MAC |
| **Connection** | GATT client, LE transport, optional MTU 123 |
| **GATT** | Standard DIS + battery + Oclean custom service (+ Blufi/OTA services when needed) |
| **Protocol** | Binary hex-opcode commands over write characteristics; responses via notifications |
| **Wi‑Fi / OTA** | Blufi over `0xFFFF` service; OTA hijacks GATT callback via `o.c` hooks |

Because much of the scan-filter and response-parsing code is decompiled incompletely (`z.c.onScanResult`, `g.g.v`), some opcode-to-feature mappings are inferred from write-side code and enum names rather than full receive handlers. If you want to go deeper on a specific part (e.g. live brushing telemetry opcodes, Blufi Wi‑Fi flow, or a particular `DeviceType`), say which area and we can trace it further.

</div>

The agent did a fairly good job of explaining the BLE communication protocol, from advertisement parsing to connecting and controlling. Perhaps our query was too broad, and the response included some details that were not actually very useful.

It seems that there is no authentication or encryption, and the only security the vendor implemented is gatekeeping access to a specific toothbrush by linking it to the user's online account. If we create our own application, we can connect to any device without an online account. This is probably not associated with any significant risk, although some settings could likely disrupt normal use. If the OTA firmware upgrade is not secured properly, a malicious update could even break the device permanently.

### Add live capture

A live capture from a real device greatly helps to match the static analysis with dynamic behavior. I manually connected to the device using BLESPloit, subscribed, and sent a sample command from the reverse-engineering output above to get device info. In the Capture History, I then had `adv.json` (advertising data), `ble.json` (services + characteristics), and a GATT log with the request and response.

### Optional previous version of the application

In many cases, especially if the code is obfuscated, it is worth looking at a previous version of the application. The communication protocol usually does not change very often, so there is a good chance it is mostly the same in an earlier version, which may be easier to decompile.

Unofficial stores such as [apkpure.com](https://apkpure.com) offer previous APK versions. For our application, the first available one is version 2.1.10, available [here](https://apkpure.com/oclean-care/com.yunding.noopsychebrushforeign/download/2.1.10).
<img src="../oclean_previous_version_apkpure.png" style="width: 60%; height: auto; display: block">

This version does not seem to have the same "minification," and all the classes and methods are visible in plain form:
<img src="../oclean_care_2_1_10_jadx.png" style="width: 100%; height: auto; display: block">

With the second app decompiled and the sample data available, the agent is now able to see more details:

> In the @src_2.1.10 there is an older version of the app that does not look like obfuscated. And in the @7028457F59CE_Oclean_Y3L there is a scan (advertisement + ble.json = services + characteristics) of a sample device

Result:

<div style="max-height: 500px; overflow-y: auto; padding: 1rem;
  border: 1px solid var(--color-border, #ccc); border-radius: 0.5rem;
  background: var(--color-surface)">... Good references — together they make the BLE stack much clearer than the obfuscated current build alone. Here is a consolidated picture using all three sources.

---

<h2>What changed between versions</h2>

| | **`src_2.1.10/`** (v2.1.10) | **Current app** (`src/main/`) |
|---|---|---|
| BLE code location | In-app: `YingBluetooth`, `BluetoothService`, `Statics`, `OrderUtils` | Extracted SDK: `com.ocleanble.lib` (`OcleanBleManager`, `g.g`, `j.h`, …) |
| Architecture | EventBus-driven monolith | Listener-based SDK + `OcleanDataService` |
| UUIDs / opcodes | Explicit in `Statics.java` | Same values, obfuscated class names |
| Scan filter | Name starts with `"oclean"` | Name contains `"oclean"`, `"crest"`, or `"xtc"` |

The protocol itself did not fundamentally change — it was refactored into a licensed SDK (`sdkauth.oclean.com` in the current build).

---

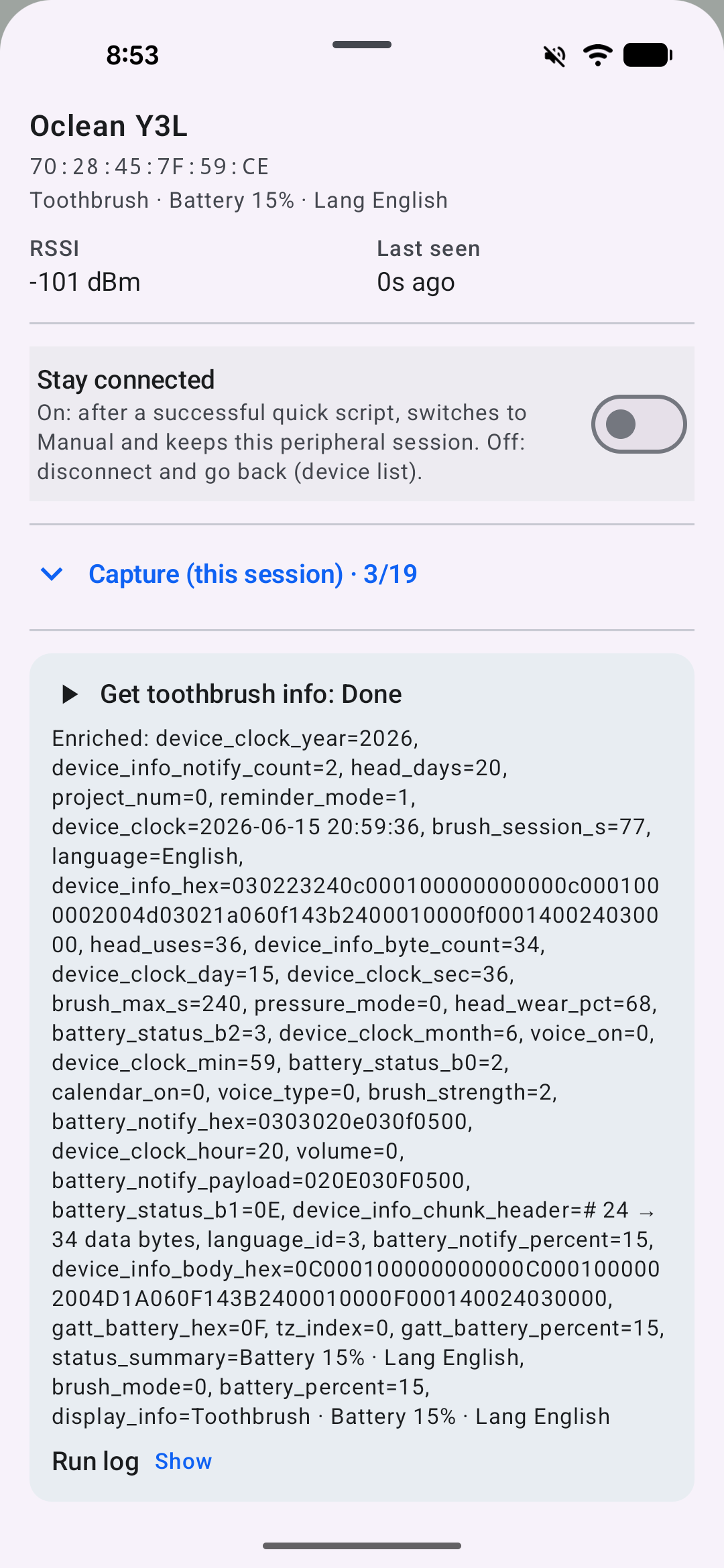

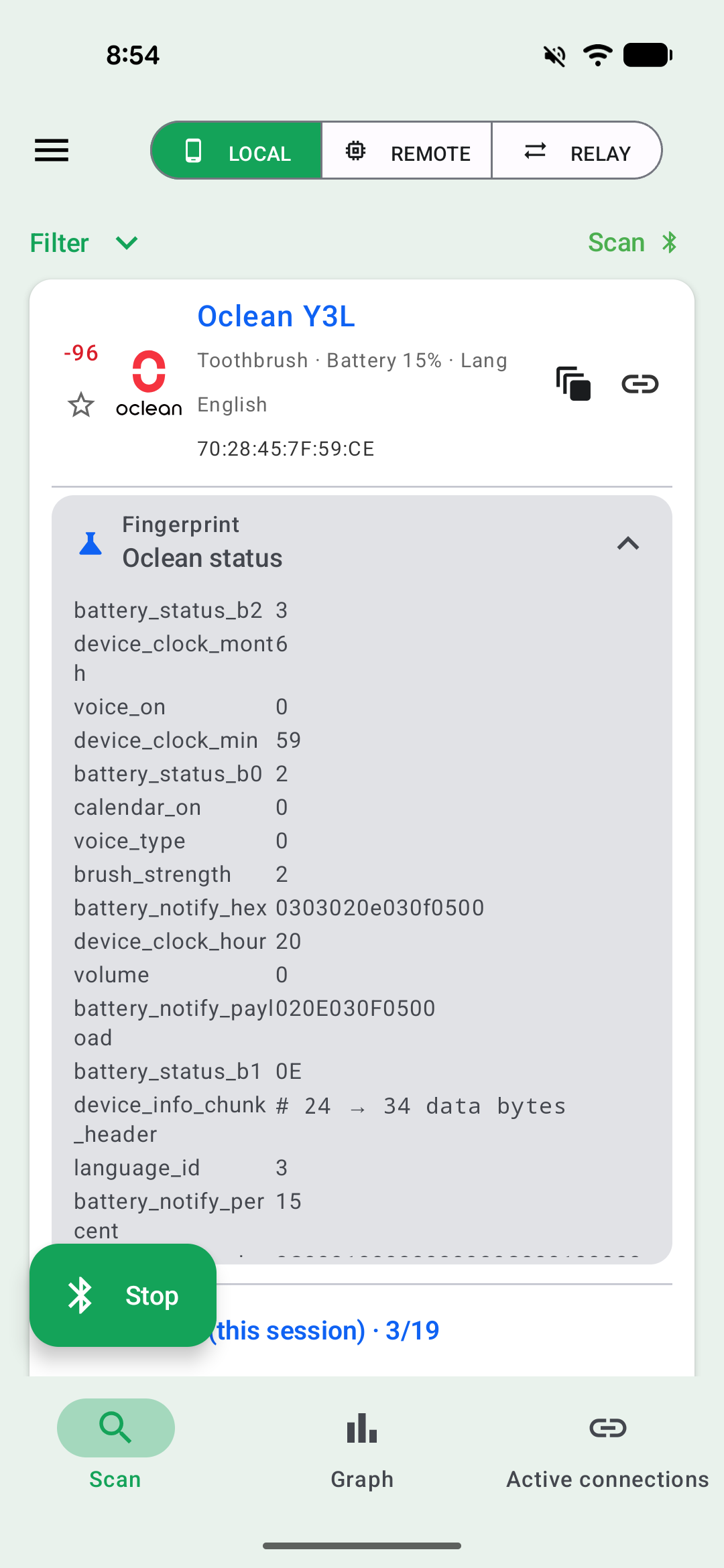

<h2>Real device: Oclean Y3L (`7028457F59CE_Oclean_Y3L/`)</h2>

**MAC:** `70:28:45:7F:59:CE`
**Display name:** `Oclean Y3L`
**Connectable, legacy ADV_IND, ~250 ms interval**

<h3>Advertising (decoded from `adv.json` / `ble.json`)</h3>

**Primary advertising PDU** (`02010411071bd790ece8b975800a4644d30104eda607ffce597f452870`):

| AD element | Type | Content |
|------------|------|---------|
| Flags | `0x01` | `0x04` — BLE only, no classic BT |
| 128-bit service UUID | `0x07` | **`a6ed0401-d344-460a-8075-b9e8ec90d71b`** |
| Manufacturer data | `0xFF` | Company ID `0x59CE`, payload `7f452870` (last 4 bytes of MAC reversed: `70:28:45:7F`) |

**Scan response** (`0b094f636c65616e2059334c`):

| AD element | Type | Content |
|------------|------|---------|
| Complete Local Name | `0x09` | **`Oclean Y3L`** |

Important: the main Oclean GATT service **`8082caa8-…-cc18` is not advertised**. Discovery relies on the **device name** in scan response (same as v2.1.10 filtering on `"oclean"`). The advertised `a6ed0401` service is a **secondary** protocol channel (see below).

After connect, GAP name (`2A00`) reads as **`Oclean_Y3L`** (`4f636c65616e5f59334c` in `ble.json`).

<h3>GATT table (from `ble.json`) — mapped to app usage</h3>

```mermaid
flowchart LR
    subgraph Adv["Advertising"]
        Name["Scan rsp: Oclean Y3L"]
        SvcAdv["Adv UUID: a6ed0401"]
        Mfg["Mfg data: MAC hint"]
    end

    subgraph GATT["After connect"]
        Oclean["8082caa8 … cc18\n(main app protocol)"]
        DG["a6ed0401 … d71b\n(DG framed protocol)"]
        DIS["180a Device Info"]
        Bat["180f Battery"]
    end

    App["OcleanBleManager / YingBluetooth"] --> Oclean
    App --> DIS
    App --> Bat
    Tool["s.a DG client"] -.-> DG
    Adv --> App

1. Generic Access (`1800`) + GAP name

2. Generic Attribute (`1801`)

3. **DG service** `a6ed0401-d344-460a-8075-b9e8ec90d71b` *(new on Y3L, not in v2.1.10 `Statics`)*

In the current app this is implemented in s.a as a framed binary protocol (magic 0x4744 / 18244, opcode, length, payload, checksum) — separate from the hex-opcode Oclean protocol. It is advertised so tools/scanners can find it; the main brush UI still uses 8082caa8.

4. **Oclean main service** `8082caa8-41a6-4021-91c6-56f9b954cc18`

Same UUIDs as v2.1.10 Statics.java:

From v2.1.10 Statics.java:

    public static final UUID OCLEAN_SERVICE_UUID = UUID.fromString("8082caa8-41a6-4021-91c6-56f9b954cc18");
    public static final UUID OCLEAN_READ_INFO_UUID = UUID.fromString("5f78df94-798c-46f5-990a-855b673fbb86");
    public static final UUID OCLEAN_WRITE_INFO_UUID = UUID.fromString("9d84b9a3-000c-49d8-9183-855b673fbb85");
    public static final UUID OCLEAN_SEND_BRUSH_CMD_UUID = UUID.fromString("5f78df94-798c-46f5-990a-855b673fbb89");
    public static final UUID OCLEAN_RECEIVE_BRUSH_UUID = UUID.fromString("5f78df94-798c-46f5-990a-855b673fbb90");

5. Device Information (`180a`) — read at connect

6. Battery (`180f`)

End-to-end flow (confirmed across all three sources)

1. Scan / advertising

v2.1.10 — simple and readable:

        public void onLeScan(BluetoothDevice bluetoothDevice, int i, byte[] bArr) {
            if (bluetoothDevice != null) {
                String name = bluetoothDevice.getName();
                if (TextUtils.isEmpty(name) || !name.toLowerCase().startsWith("oclean")) {
                    return;
                }
                EventBus.getDefault().post(new SearshEventBus(SearshEventBus.STATUS_OK, bluetoothDevice));

Current app: same idea, broader name filter (oclean / crest / xtc), plus optional SQLite device-face list when SDK validation is on.

The Y3L capture confirms: name in scan response is the primary discovery key; manufacturer data carries a MAC hint; one 128-bit UUID is advertised (a6ed0401).

2. Connect + GATT setup

Both versions follow the same sequence:… 1. connectGatt(context, autoConnect=false, callback, TRANSPORT_LE) 2. Wait for connected 3. discoverServices() 4. requestMtu(123) → your Y3L log shows MTU 247 (ATT payload ≈ 244 bytes) 5. Read DIS characteristics (model, HW/FW/SW) 6. Enable notifications on battery + Oclean notify chars (write 0x2902 CCCD) 7. Instantiate device-specific command handler 8. Send init commands (time sync 0201, device info 0303, etc.)

v2.1.10 connect:

    public void connectDevice(String str) {
        // ...
        this.mBluetoothGatt = remoteDevice.connectGatt(this.mContext, false, this.gattCallback, 2, 1);

Current equivalent: i.a.i() → j.h callback → a0.d.run() state machine.

3. Command protocol (hex opcodes over `OCLEAN_WRITE_INFO`)

Commands are hex-string opcodes written to 9d84b9a3-…-bb85, with responses on notify characteristics. v2.1.10 documents these clearly in Statics / OrderUtils:

Write path (v2.1.10):

    public void sendOrder(String str) {
        writeBleCharacteristic(Statics.OCLEAN_SERVICE_UUID, Statics.OCLEAN_WRITE_INFO_UUID, StrUtils.hexStringToBytes(str));
    }

Current app: g.g.L() sends 0201 + GMT timestamp; g.d worker does write → wait for onCharacteristicWrite → wait for notify.

Live brushing data arrives on 5f78df94-…-bb90 (onCharacteristicChanged → ParseUtils in v2.1.10, g.g.v() in current SDK).

4. OTA (separate GATT profile)

v2.1.10 Statics also defines SPOTA/Dialog OTA UUIDs (0000fef5, 8082…cc34, etc.) — same as current o.d. During OTA, normal command routing is bypassed.

Practical summary for working with a Y3L

If you want to mimic the Oclean app:

1. Scan for name Oclean Y3L (or prefix Oclean)
2. Connect by MAC 70:28:45:7F:59:CE
3. Discover services, request MTU ~123+
4. Read 2A24 / 2A27 / 2A28 to identify model/protocol
5. Enable notifications on 2A19, …bb86, …bb90
6. Write hex commands to 9d84b9a3-…-bb85
7. Parse notify payloads on …bb86 (command replies) and …bb90 (brush sessions)

If you want the DG protocol (advertised UUID):

• Use service a6ed0401, notify on a6ed0402, write framed packets to a6ed0403 / a6ed0404 per s.a (header 0x4744, opcode, length, checksum)

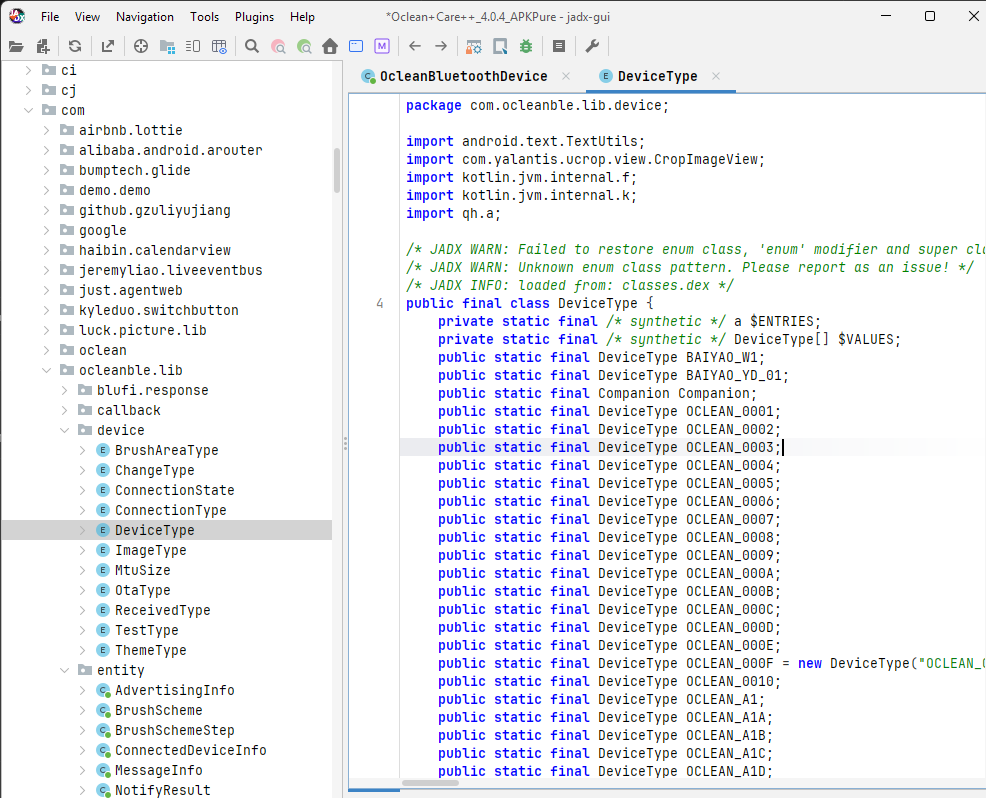

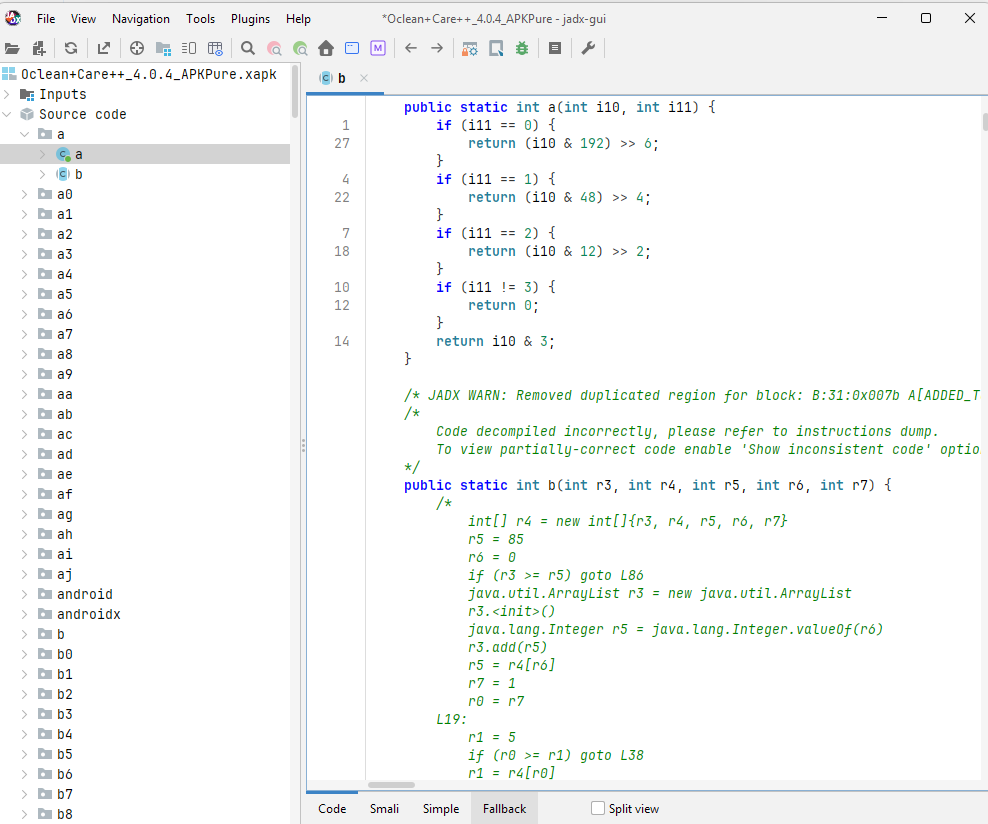

The older src_2.1.10 tree is the best readable reference for opcodes and UUID constants; the Y3L capture is the ground truth for what a real Y3L exposes over the air and in GATT; the current obfuscated code is the same design with an SDK wrapper and extra device variants (Y3L’s a6ed0401 service, Blufi on Wi‑Fi models, etc.).

If useful next, I can decode a specific notify payload format (e.g. live brushing on …bb90) or map DeviceType.OCLEAN_Y3* entries to the handler class picked at connect time.

Transport (where to write)

Pattern: write opcode (+ payload) to bb85 with response; read ack/data from bb86 notifications. History uses bb89 → bb90.

Queries (write to bb85 → reply on bb86)

Settings — core (bb85 + payload)

From Statics.java and handler code:

There is no opcode in the app that remotely starts brushing. Brushing begins on the device; live session data arrives on bb90.

Voice, sound, and language (your main question)

1. Voice on/off + volume — `0203`

Built by OrderUtils.GetVoiceBaseOrder() and setDeviceVoice() → handler R() in g/a.java:

    public static byte[] GetVoiceBaseOrder(boolean z, int i, boolean z2) {
        byte[] bArrHexStringToBytes = StrUtils.hexStringToBytes(Statics.ACTION_SET_AUDIO_INFO);
        return new byte[]{bArrHexStringToBytes[0], bArrHexStringToBytes[1], (byte) (!z ? 1 : 0), (byte) i, (byte) (!z2 ? 1 : 0)};

Example: voice on, level 2 → roughly 0203003A01 (58 = 0x3A).

2. Voice pack / TTS type — `0207`

setDeviceVoiceLanguage() → 0207 + 4-byte big-endian int. Old UI used 1 vs 2 (standard vs “language model” voice).

3. UI language — `0216`

changeDeviceUILanguage() → 0216 + 1 byte:

Your Y3L capture had byte 32 = 0x03 (English) in the 030201 device-info block.

4. Clear voice/reminder state — `0204`

• 02040100 — clear voice status
• 02040001 — clear reminder status

5. Voice reminders (3 toggles) — `0231`

setVoiceReminder() on newer handlers: 0231 + 3 on/off bytes.

6. Sync voice pack — `0244`

syncDeviceVoice() on WiFi/newer devices (g/n0.java).

7. Music (separate from voice prompts)

What you **read back** (from `030201`)

Y3 device-info layout:

Other notable settings (Y3 / Y3L relevant)

Brush history & live data (bb89 / bb90)

High-level SDK surface (`OcleanBleManager`)

The current app exposes 60+ BLE operations; not all work on Y3L. Grouped:

• Voice/audio: setDeviceVoice, setDeviceVoiceLanguage, setVoiceReminder, syncDeviceVoice, readMusicInfo, syncBrushSong, syncPlayMusic, …
• Language/UI: changeDeviceUILanguage, syncDeviceUIData, startDeviceUIImages
• Brushing: setBrushPause, setRunningPattern, setRunningSwitch, setOverPressure, setPreventSplash, syncRunningScheme, readRunningData, …
• Head/maintenance: clearHeadData, setRunningHeadMaxTime, clearRunningDate
• Time/user: calibrationTime, setUserInfo, readDeviceTime
• WiFi models: connectWifi, startScanWifi, syncWifiNameLow, …
• OTA: otaUpgrade (SPOTA service)
• Debug: sendTestCommand(head, payload)

If the handler returns error 70 (command_info_0x46), that opcode is not implemented for your device type.

Y3L practical summary

For your Oclean Y3L over BLE, the settings that are clearly supported in captures and g/h.java:

Not on Y3L (or unconfirmed): remote brush start, WiFi provisioning, OTA over main service, many 03xx/02Axx/024x commands reserved for other models.

Example hex (after subscribing to bb86)

0303                          → battery reply on bb86
030201                        → device info (often 2× 0302 notifies)
021603                        → set language English
0203003A01                    → voice ON, volume level ~2 (0x3A=58)
020700000001                  → voice pack type 1
022201                        → pause ON
022200                        → pause OFF / resume
0202                          → clear brushing history
0307                          → on bb89: request history (bb90 notifies)

If you want, I can turn this into a BLEspoit menu (voice level picker, language list, pause/resume) — switch to Agent mode and say which commands to add first.
